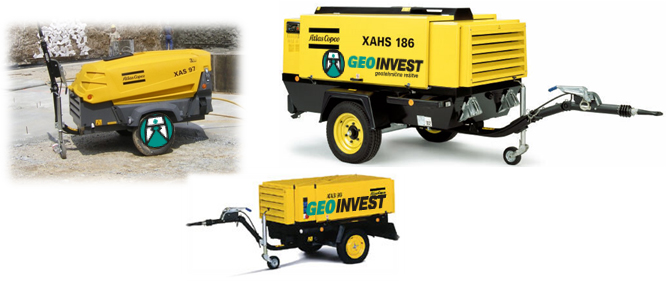

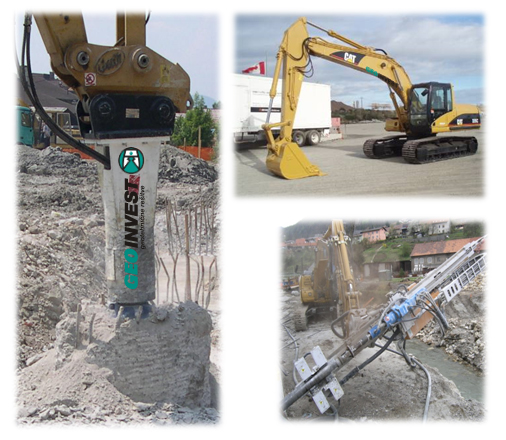

Home » Machines » Anchoring Anchoring Visokotlačni kompresorji Visokotlačne kompresorje uporabljamo pri izvedbi mini pilotov in sider z uporabo globinskih kladiv ter pri aktivacijah vodnjakov. Oznaka XAHS 365 XRHS 396 XAVS 396 VHP 700 Proizvajalec Atlas Copco Atlas Copco Atlas Copco Ingersoll Rand Glasnost stroja[Db] 100 102 100 np Pretok zraka [m3/min] 21,2 23,5 23,5 21 Teža [kg] 4420 5274 5775 4000 Delovni tlak max[bar] 12 20 14 12 Dimenzije [cm] 421x181x233 4908x2140x2462 5,46x2,1x2,46 kW 206 230 224 Nizkotlačni kompresorji Nizkotlačne kompresorje uporabljamo pri izvdebi pilotiranja, sidranja, sekanja odvečnega-slabega betona, torkretiranja... Oznaka XAS - 96 XAS - 97 XAHS - 186 Proizvajalec Atlas Copco Atlas Copco Atlas Copco Glasnost stroja [Db] 100 98 101 Pretok zraka [m3/min] 5,82 5,82 11,16 Teža[kg] 900 940 1825 Max delovni tlak [bar] 7 7 14 Dimenzije [cm] 349x135x127 336x1417x136 435x170x166 kW 35,4 36 107 Hydraulic excavator CATERPILLAR 320C LN Hydraulic excavator CATERPILLAR 320C LN is intended to implement the excavations, extremely versatile when milling pile heads drilling wire and IBO anchors. Can also be used as an auxiliary machine in different parts of the site. Engine Type Diesel Engine noise [dB] Max. inclination of the slope in transport mode [%] Max. inclination of the slope in working mode [%] Wire anchors IBO anchors Excavation Diameters [mm] up to 140 all diameters 1000 Max depth [m] 12,00 15,00 5,69 Transport dimensions [cm][ŠxDxV] 280x965x312 280x965x312 280x965x312 Weight[kg] 22000 22000 22000 Working dimensions [cm][ŠxDxV] 280x600x881 280x600x881 280x600x570-881 Hydraulic miller Type ER - 450L Diamater 45 cm Weight 370 kg Dimensions 45x116-146 Miller - cutter of pile heads In excavation mode Anchoring mode (above)Hydraulic drill rig Casagrande C-4 Hydraulic drill rig C-4 is made under newest ecological standards and is used for jet grouting piling, anchoring, geomechanical research, smaller wells... Engine type Diesel Noise [dB] Max. slope inclination in transport mode [%] Max. slope inclination in work mode [%] Geomechanical drilling Jet grouting Anchoring Mini piling Diameters [mm] Vsi profiles One and two phase 143 - 153 150 - 250 Max depth [m] 25 12 25 25 Transport dimensions [cm][WxLxH] 180x500x253 180x500x253 180x500x253 180x500x253 Weight[kg] 7900 8200 7900 7900 Working dimensions [cm][WxLxH] 180x559x500-1120 180x559x500-1120 180x559x500 180x559x500-1120 Drill rig Casagrande C-6 Drill rig C-6 is used ofr jet grouting piling, geotechnical and IBO anchoring, geomechanical drilling, smaller wells... Engine type Diesel Hydraulic Noise [Db] Max. slope inclination in transport mode [%] Max. slope inclination in work mode [%] Drilling Jet grouting Diameters [mm] 50 - 305 - Max depth [m] 35 34 Transport dimensions [cm][WxLxH] 225x771x277 300x1700x365 Weight[kg] 13500 70000 Working dimensions [cm][WxLxH] 225x650x7,02 225x650x702 + (300, 500, 600 - extensions) Hidravlični vrtalni stroj Casagrande C-7 Hidravlični vrtalni stroj C-7 izdelan po najnovejših ekoloških normah in delo podprto z natančno računalniško spremljavo in obdelavo podatkov uporabljamo za izdelavo jet grouting pilotov, mini pilotov, geotehničnih in IBO sider, geomehanskih vrtin, manjših vodnjakov... Tip motorja Diesel Glasnost stroja [Db] Max. naklon brežine v transportnem položaju [%] Max. naklon brežine v delovnem položaju [%] Geomehansko vrtanje Jet grouting Sidranje Mini pilotiranje Premeri [mm] 50 - 305 - 143 - 153 150 - 500 Max globina [m] 35 34 18 Transportne dimenzije [cm][ŠxDxV] 250x1300x310 250x1300x310 250x1300x310 250x1300x310 Teža[kg] 22500 23000 22500 22500 Delovne dimenzije [cm][ŠxDxV] 250x870x1344 250x870x1344-1844 250x870x1344 250x870x1344 Hidravlični vrtalni stroj Casagrande C-8 Hidravlični vrtalni stroj C-8 izdelan po najnovejših ekoloških normah in delo podprto z natančno računalniško spremljavo in obdelavo podatkov uporabljamo za izdelavo jet grouting pilotov, mini pilotov, geotehničnih in IBO sider, geomehanskih vrtin, manjših vodnjakov... Tip motorja Diesel Glasnost stroja [Db] Max. naklon brežine v transportnem položaju [%] Max. naklon brežine v delovnem položaju [%] Geomehansko vrtanje Jet grouting Sidranje Mini pilotiranje Premeri [mm] Vsi profili eno in dvofazni 143 - 153 150 - 400 Max globina [m] 40 20 40 20 Transportne dimenzije [cm][ŠxDxV] 250x1130x340 250x1130x340 250x1130x340 250x1130x340 Teža[kg] 25700 26000 25700 25700 Delovne dimenzije [cm][ŠxDxV] 250x698x1130 250x698x1130-2130 250x698x1130 250x698x1130 Hydraulic drill rig Casagrande C-14 Hydraulic drill rig C-14 is made under newest ecological standards and is used for jet grouting piles, mini piles, geotechnical anchors, geomechanical researching, wells.... Engine type Diesel Power [kW] 190 Max. slope inclination in transport mode [%] 58 Max. slope inclination in work mode [%] 5 Max. torque [kN/m] 17,9 Geomechanical drilling Jet grouting Anchoring Mini piles Diameters [mm] Vsi profiles one and two phase 143 - 153 150 - 500 Max depth [m] 50 20 50 20 Transport dimensions [cm][WxLxH] 253x1110x300 253x1110x300 253x1110x300 253x1110x300 Weight[kg] 34000 34000 34000 34000 Working dimensions [cm][WxLxH] 409x850x1590 409x850x2090 409x850x1590 409x850x1590 Special hydraulic drill rig Boart Longyear DB 520 Special hydralic drill rig Boart Longyear DB520 is used for micro-piloing, geotechnical anchors, geomechanics, soil improvement with jet grouting technique an smaller wells. Speciality of this machine is drilling inside buildings because it's small and it's engine is seperated from the drilling part. Engine type Diesel Noise [dB] 75 Max. slope inclination in transport mode [%] Max. slope inclination in work mode [%] Geomechanic drilling Anchoring Mini piling Jet grouting Diameters [mm] All profiles 143 - 153 do 300 - Max depth [m] 15 15 15 15 Transport dimensions [cm][WxLxH] 115x700x205 115x700x205 115x700x205 115x700x205 Weight[kg] 3500+1400 3500+1400 3500+1400 3500+1400 Working dimensions [cm][WxLxH] 80/100x430x185- 355-700 80/100x430x185- 355 80/100x430x185- 355-700 80/100x430x185- 355-700 Mešalec za cementno maso Mešalec agitatorjem in vijačno črpalko, za pripravo, vzdrževanje in tlačni transport cementne mase. Mešalce uporabljamo za pripravo injekcijske mase in injektiranje vrvnih sider, IBO sider ter pri izdelavi mini pilotov. Kapaciteta mešalne postaje 100 Priključna električna moč [kW] 12 Teža [kg] 900 Dimenzije [cm] 250x180x170 Tip motorja Elektro Max pritisk črpalke [bar] 12 Naklon tal pri postavitvi [%] 0 Hidravlični vrtalni stroj Nenzi N-3-S Hidravlični vrtalni stroj Nenzi N-3-S uporabljamo za izdelavo mini pilotov, geotehničnih in IBO sider, geomehanskih vrtin, manjših vodnjakov... Tip motorja Diesel Glasnost motorja [dB] 75 Max. naklon brežine v transportnem položaju [%] 50 Max. naklon brežine v delovnem položaju [%] Geomehansko vrtanje Sidranje Mini pilotiranje Premeri [mm] Vsi profili 143 - 153 do 300 Max globina [m] 30 28 15 Transportne dimenzije [cm][ŠxDxV] 200x515x210 200x515x210 200x515x210 Teža[kg] 12000 12000 12000 Delovne dimenzije [cm][ŠxDxV] 196x520x750 196x520x750 196x520x750
